Overview

• Resizing: A video stream may need to be resized to fit the native resolution of a screen (e.g., resizing 1920×1080 to 1280×720 for a smaller display).
• Rotating: Mobile devices or webcams may produce rotated frames depending on how the device is held. Rotating the frame ensures proper display alignment.
• Flipping/Mirroring: Front cameras often produce mirrored images. Horizontal flipping corrects this for natural viewing.
• Cropping: Cropping can help convert non-standard aspect ratios (e.g., 4:3 or 21:9) to standard ones like 16:9 for compatibility with downstream encoders or players.
• Color conversion: Тransform between formats (e.g., RGB to NV12) for compatibility with downstream components.

​

Example Pipeline

# Replace $HOME to the appropriate device path before running the commands.
# For QLI:    /root
# For Ubuntu: /home/ubuntu
# Modify this based on your platform and ensure files are copied to the correct location on the device.
# Run from your host machine — replace <user> and <device-ip>

ssh <user>@<device-ip> "mkdir -p $HOME/{media,media/output}"
scp Draw_1080p_180s_30FPS.mp4   <user>@<device-ip>:$HOME/media/

# Run from your host machine — replace <user> and <device-ip>
ssh <user>@<device-ip>

mkdir -p $HOME/{media,media/output}
export SRC_VIDEO_NAME=Draw_1080p_180s_30FPS.mp4

gst-launch-1.0 -e \
filesrc location=$HOME/media/$SRC_VIDEO_NAME ! \
decodebin ! \
videoconvert ! \
video/x-raw,format=NV12 ! \
qtivtransform ! \
videoconvert ! \
waylandsink sync=false

​

Hiearchy

​

Pad Templates

​

sink

​

src

​

Element Properties

​

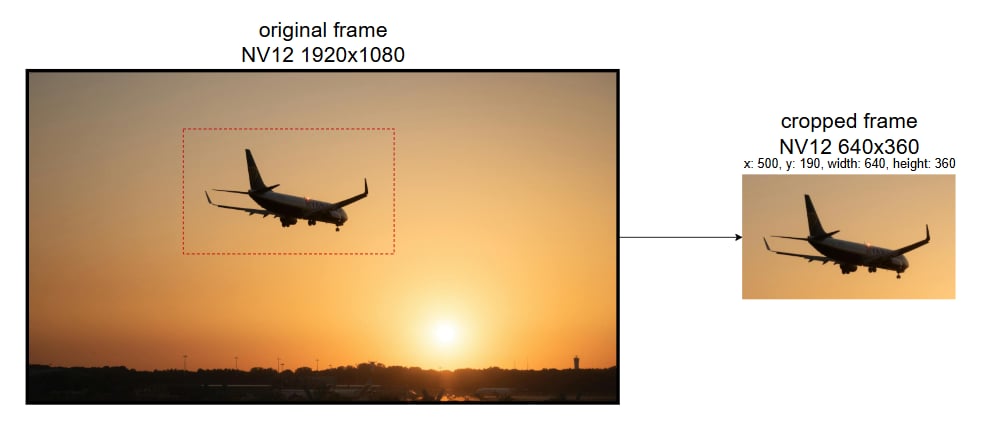

Cropping Behavior

​

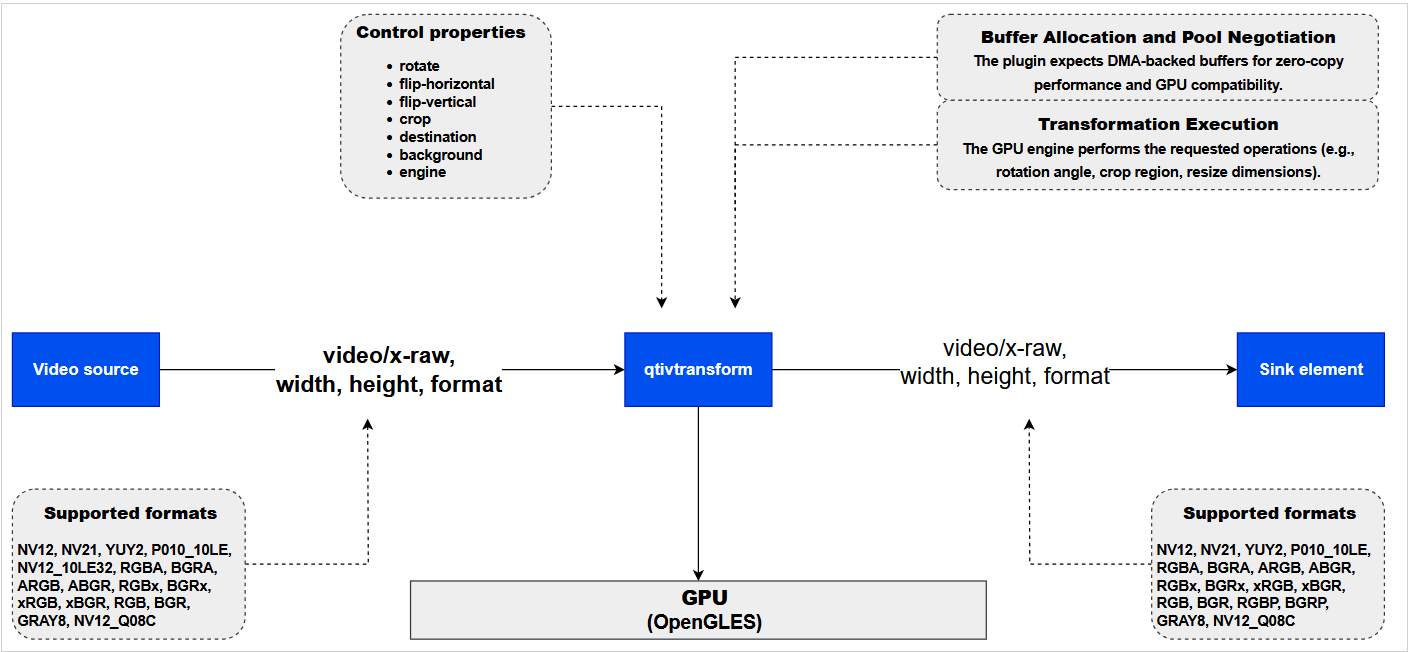

Internal Architecture

• Input Pad: Receives video frames from upstream elements (e.g. camera source, decoder).
• Output Pad: Sends transformed frames downstream (e.g. display, encoder).

​

Processing Flow

​

Caps negotiation

• The output format and resolution in qtivtransform is determined by the negotiated output caps during the GStreamer pipeline setup.
• These caps define the resolution, color format, and other properties that downstream elements expect, and qtivtransform adapts its output accordingly.

​

Property Parsing and Configuration

• Transformation parameters (e.g., rotation angle, crop region, resize dimensions) are parsed from the element’s properties.
• These parameters are stored in an internal configuration structure that guides the transformation logic.

​

Frame Reception

• Incoming video frames are received through the sink pad (input pad).
• The plugin validates the frame format and dimensions.

​

Buffer Allocation and Pool Negotiation

• The plugin expects DMA-backed buffers for zero-copy performance and GPU compatibility.
• If the upstream element does not provide DMA buffers:
  • qtivtransform offers its own buffer pool via GStreamer’s allocation mechanism.
  • If the upstream accepts the pool, compatible buffers are allocated.
  • If not, the plugin fails during negotiation and reports an error.
• This ensures buffer memory layout is optimized for the selected engine.

​

Transformation Execution

• The GPU engine performs the requested operations (e.g., rotation angle, crop region, resize dimensions).
• The scaling is performed before color conversion to minimize GPU memory bandwidth usage.

​

Frame Output

• The transformed frame is pushed to the source pad (output pad).
• Downstream elements (e.g. encoders, displays) receive the processed frame for further handling.

​

Buffer Management and Pool Requirements

• DMA Buffer Requirement
  • The plugin expects incoming buffers to be DMA-backed.
  • This is crucial for interoperability with GPU-based backends and for minimizing memory copies during transformation.
• Buffer Pool Negotiation
  • If the upstream element does not provide DMA buffers, qtivtransform can offer its own buffer pool to the upstream element via the standard GStreamer allocation mechanism.
  • This allows the upstream plugin to allocate compatible buffers from qtivtransform’s pool.
• Fallback Behavior
  • If the upstream element does not support buffer pool negotiation (i.e., cannot accept a pool from qtivtransform), the plugin will not function correctly.
  • In such cases, pipeline setup will fail, and an error will be reported during negotiation.

​

Usage

​

Downscale a YUV video stream to RGB format

• This pipeline demonstrates how qtivtransform can be used to convert and downscale a YUV (NV12) video stream to RGB format.
• This is useful in scenarios where:
  • You need to dump RGB frames to disk for use in a custom image processing or computer vision algorithm that expects raw RGB input.
  • A downstream plugin or application requires RGB format instead of NV12.

gst-launch-1.0 -e --gst-debug=2 qticamsrc ! video/x-raw,width=1920,height=1080,format=NV12,framerate=5/1 ! queue ! qtivtransform ! video/x-raw,width=1280,height=720,format=RGB ! multifilesink location=$HOME/media/frame_%d.rgb

​

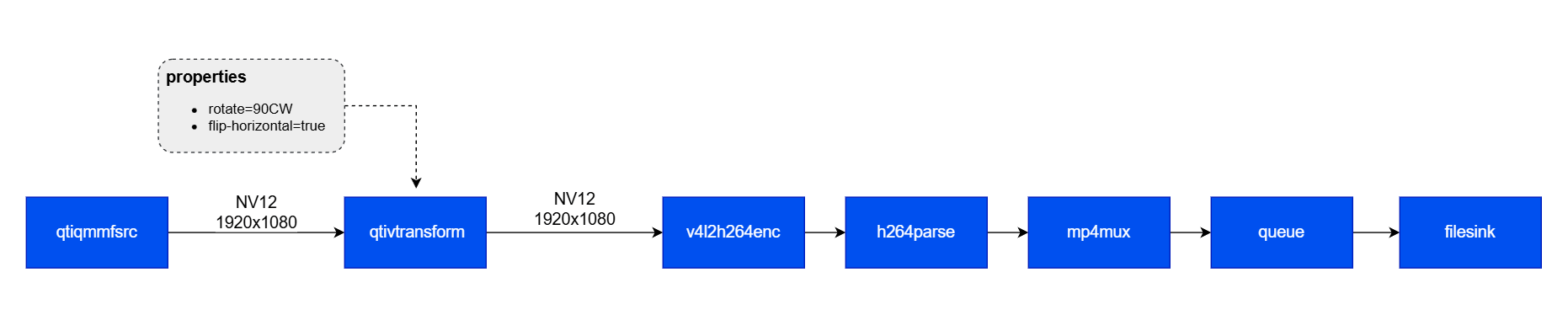

Horizontal flip

• This pipeline captures video frames from a Qualcomm camera source (qticamsrc) at 1920×1080 resolution in NV12 format. The frames are passed to the qtivtransform, which applies a 90-degree clockwise rotation and horizontal flip. After transformation, the frames are encoded using the hardware-accelerated H.264 encoder (v4l2h264enc). The encoded stream is parsed (h264parse), multiplexed into an MP4 container (mp4mux), and written to disk via filesink.

gst-launch-1.0 -e --gst-debug=2 qticamsrc ! video/x-raw,width=1920,height=1080,format=NV12,framerate=30/1 ! queue ! qtivtransform rotate=90CW flip-horizontal=true ! v4l2h264enc capture-io-mode=4 output-io-mode=4 ! h264parse ! mp4mux ! queue ! filesink location="$HOME/media/video.mp4"

​

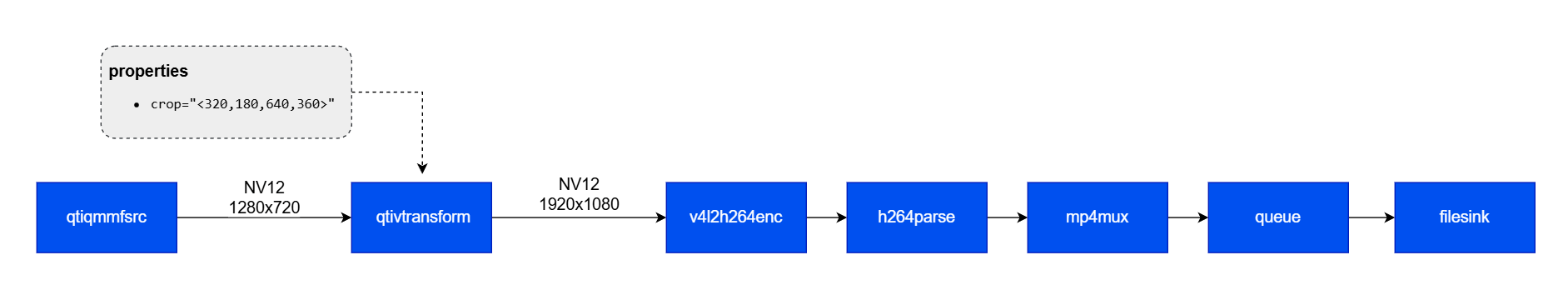

Cropping and Scaling

• The following GStreamer pipeline demonstrates how qtivtransform performs cropping and scaling before encoding the video:
  • Input: 1280×720 NV12 video stream from qticamsrc.
  • Cropping: qtivtransform crops a 640×360 region starting at (320,180) from the input frame. This is done immediately upon receiving the frame.
  • Scaling: The cropped region is then scaled up to 1920×1080 as specified by the output caps.
  • Encoding: The transformed frame is encoded using v4l2h264enc and saved as an MP4 file.
  gst-launch-1.0 -e --gst-debug=2 qticamsrc ! video/x-raw,width=1280,height=720,format=NV12,framerate=30/1 ! queue ! qtivtransform crop="<320,180,640,360>" ! video/x-raw,width=1920,height=1080 ! v4l2h264enc capture-io-mode=4 output-io-mode=4 ! h264parse ! mp4mux ! queue ! filesink location="$HOME/media/video.mp4"
