SPI

The Serial Peripheral Interface (SPI) is a synchronous, full-duplex, 4-wire serial bus.

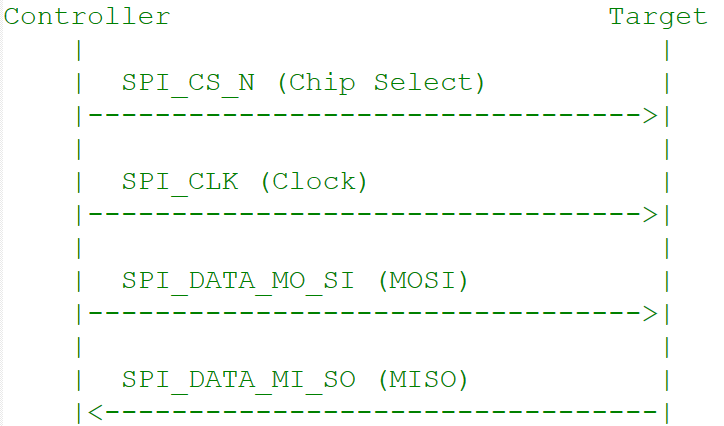

Signals

Signal	Description
MOSI	Controller data output, target data input
MISO	Controller data input, target data output
SCLK	Clock generated by the controller
CS	Chip-select (active low); up to 4 chip-select lines per bus

Transfer Modes by Subsystem

Subsystem	Transfer Modes	Max Speed	Notes
Linux	FIFO, CPU DMA, GSI	50 MHz	4–32 bits per word; up to 4 CS
Boot	FIFO only	50 MHz	Polling mode; GSI not supported
aDSP	Full/half duplex, synchronous	50 MHz	Raw bit-level; no framing or error checking

Interface Components

Device Tree Sources

Platform	File
Dragonwing IQ-9075	`arch/arm64/boot/dts/qcom/lemans.dtsi`

APIs

Subsystem	Header
Linux	`include/uapi/linux/spi/spidev.h`, `include/linux/spi/spi.h`
Boot	`boot_images/boot/QcomPkg/Include/SpiApi.h`
aDSP	`adsp_proc/core/api/buses/spi_api.h`

Software Configuration

Linux Device Tree Example

spi@a98000 {
    compatible = "qcom,geni-spi";
    reg = <0 0x00a98000 0 0x4000>;
    clocks = <&gcc GCC_QUPV3_WRAP1_S6_CLK>;
    clock-names = "se";
    pinctrl-names = "default";
    pinctrl-0 = <&qup_spi14_data_clk>, <&qup_spi14_cs>;
    interrupts = <GIC_SPI 368 IRQ_TYPE_LEVEL_HIGH>;
    #address-cells = <1>;
    #size-cells = <0>;
    power-domains = <&rpmhpd SC7280_CX>;
    interconnects = <&clk_virt MASTER_QUP_CORE_1 0 &clk_virt SLAVE_QUP_CORE_1 0>,
                    <&gem_noc MASTER_APPSS_PROC 0 &cnoc2 SLAVE_QUP_1 0>;
    interconnect-names = "qup-core", "qup-config";
    dmas = <&gpi_dma1 0 6 QCOM_GPI_SPI>,
           <&gpi_dma1 1 6 QCOM_GPI_SPI>;
    dma-names = "tx", "rx";
    status = "disabled";
};

GPIO pinctrl:

qup_spi14_data_clk: qup-spi14-data-clk-state {
    pins = "gpio56", "gpio57", "gpio58";
    function = "qup16";
};

qup_spi14_cs: qup-spi14-cs-state {
    pins = "gpio59";
    function = "qup16";
};

QUPAC Access Control

{ QUPV3_0_SE3, QUPV3_PROTOCOL_SPI, QUPV3_MODE_FIFO, AC_HLOS, TRUE,  TRUE, FALSE }, // CAN SPI
{ QUPV3_1_SE3, QUPV3_PROTOCOL_SPI, QUPV3_MODE_FIFO, AC_HLOS, FALSE, TRUE, TRUE  }, // LS1 SPI
{ QUPV3_1_SE4, QUPV3_PROTOCOL_SPI, QUPV3_MODE_GSI,  AC_TZ,   FALSE, TRUE, TRUE  }, // NFC ESE
{ QUPV3_1_SE6, QUPV3_PROTOCOL_SPI, QUPV3_MODE_GSI,  AC_HLOS, FALSE, TRUE, FALSE }, // FP

Configuration Steps

Enable kernel configurations

Edit kernel_platform/kernel/arch/arm64/configs/qcom_defconfig:

CONFIG_QCOM_GENI_SE=y
CONFIG_SPI_QCOM_GENI=m
CONFIG_SPI_SPIDEV=m
CONFIG_QCOM_GPI_DMA=m

Enable SPI node in device tree

&spi1 {
    status = "okay";
};

Compile and flash

Compile the kernel and device tree changes, then load images to the device.

Verification

Transfer spidev_test to device

scp spidev_test root@<IP address>:/usr
chmod 777 /usr/spidev_test

Run test

./spidev_test -D /dev/spidev1.0
./spidev_test -D /dev/spidev3.0

Expected output:

spi mode: 0x0
bits per word: 8
max speed: 500000 Hz (500 KHz)

Debugging

Enable Debug Logs

sudo su
mount -t debugfs none /sys/kernel/debug

echo -n "file spi-geni-qcom.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file qcom-geni-se.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file spidev.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file gpi.c +p" > /sys/kernel/debug/dynamic_debug/control

To disable:

echo -n "file spi-geni-qcom.c -p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file spidev.c -p" > /sys/kernel/debug/dynamic_debug/control

Troubleshooting

SPI Device Not Detected (/dev/spidev* missing)

# Check kernel config
zcat /proc/config.gz | grep -E 'CONFIG_SPI_SPIDEV|CONFIG_SPI_QCOM_GENI'
# Expect: CONFIG_SPI_QCOM_GENI=m, CONFIG_SPI_SPIDEV=m

# Check kernel logs
dmesg | grep -i spi
dmesg | grep -i geni

Verify SPI node status is "okay" in device tree
Verify QUPAC_Access.c sets QUPV3_PROTOCOL_SPI, AC_HLOS, bLoad=TRUE

SPI Transfer Failures / Data Corruption

# Test at lower speed
./spidev_test -D /dev/spidev1.0 -s 1000000

# Test different clock modes
./spidev_test -D /dev/spidev1.0 -H   # CPHA
./spidev_test -D /dev/spidev1.0 -O   # CPOL

Check GPIO drive strength and pull configuration in pinctrl
Verify clock phase and polarity match the target device
Use oscilloscope to check signal integrity

GSI/DMA Mode Not Working

lsmod | grep gpi
echo -n "file gpi.c +p" > /sys/kernel/debug/dynamic_debug/control

Verify CONFIG_QCOM_GPI_DMA=m is enabled
Check dmas and dma-names properties in device tree
Verify QUPAC_Access.c sets QUPV3_MODE_GSI and bAllowFifo=FALSE

Multiple Chip Select Issues

Verify all CS pins are configured in pinctrl. Check device tree reg property:

spidev@0 { reg = <0>; };  /* CS0 */
spidev@1 { reg = <1>; };  /* CS1 */

Test explicitly:

./spidev_test -D /dev/spidev1.0   # CS0
./spidev_test -D /dev/spidev1.1   # CS1

Boot Subsystem SPI Not Working

Verify QUP wrapper node status is "okay" and serial engine node is "disabled"
Confirm FIFO_MODE = /bits/ 8 <1> (GSI not supported in boot)
Check protocol_supported includes SPI_SUPPORTED
Verify QUPAC_Access.c settings match boot requirements

Quick Diagnostic Commands

ls /dev/spi*                          # Check SPI device nodes
dmesg | grep -i spi                   # Kernel SPI messages
dmesg | grep -i geni                  # GENI driver messages
lsmod | grep spi                      # Loaded SPI modules
lsmod | grep gpi                      # GPI DMA module
