Perform VIP flashing

When secure boot is enabled, each stage of the boot process only loads and runs the next stage if it’s digitally signed and the signature is verified. It starts with the primary boot loader (PBL), which loads the secondary boot loader (SBL) or eXtensible Boot Loader (XBL). If the signature check fails at any stage, the device halts immediately. This ensures that only trusted, signed code is executed, keeping the device secure. Validated image programming (VIP) adds another layer of control. It allows you to decide which files and commands can be sent to the device during the flashing process. Once the chip’s fuse is blown, secure boot is permanently enabled. From that point on, the device only accepts signed images—any unsigned image will cause flashing to fail. This secure flashing process is called VIP flashing.

​

Create digests table

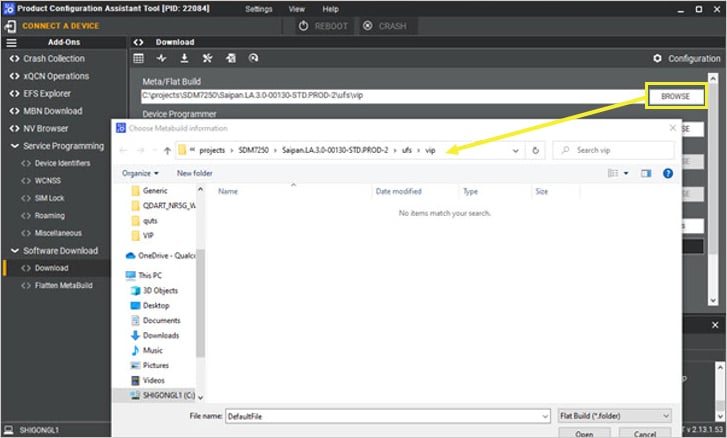

1. Select the signed image files that must be downloaded with VIP.

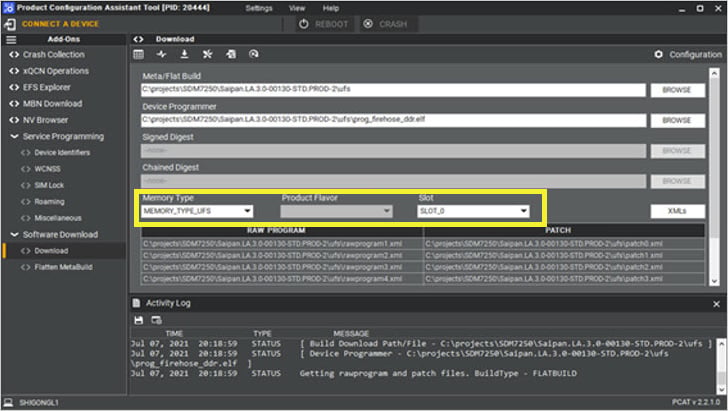

2. Select the right memory type and other parameters on the Download window.

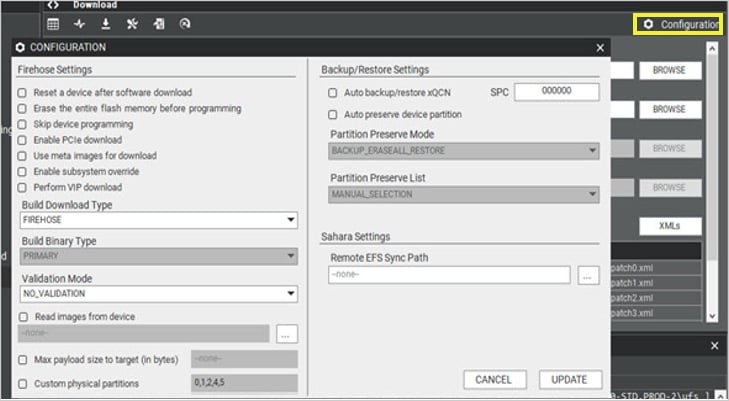

3. Set up all the download options.

Note Ensure that the configurations used when generating the digests table match those used during VIP download. For example, if you select Erase the entire flash before programming while generating the digests table, then select the same option during VIP download.

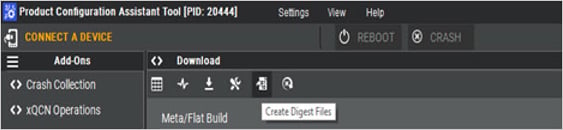

4. Select Create Digest Files.

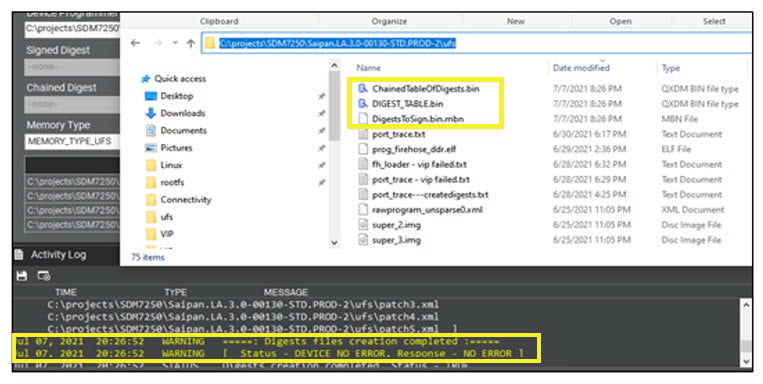

If the process runs successfully, it generates the digest files in the same folder as the build.

​

Sign components

1. Sign both the DigestsToSign.bin.mbn image and the Device Programmer image using the same keys used during secure boot enablement by using the following commands:

• To sign the digest table:

  <Metabuild>/<chipset>.LE.X.x/common/sectoolsv2/ext/Linux/sectools secure-image --sign /path/to/ DigestsToSign.bin.mbn --image-id=VIP --security-profile <Metabuild>/<chipset>.LE.X.x/common/sectoolsv2/<chipset>_security_profile.xml --oem-id=0x1 --oem-product-id=0xabcd --anti-rollback-version=0x0 --signing-mode=LOCAL --root-certificate=./OEM-KEYS/qpsa_rootca.cer --ca-certificate=./OEM-KEYS/qpsa_attestca.cer --ca-key=./OEM-KEYS/qpsa_attestca.key --outfile  ./signed_images_out/DigestsToSign.bin.mbn


• To sign the device programmer:

  <Metabuild>/<chipset>.LE.X.x/common/sectoolsv2/ext/Linux/sectools secure-image --sign /path/to/ prog_firehose_ddr.mbn --image-id= DEVICE-PROGRAMMER --security-profile <Metabuild>/<chipset>.LE.X.x/common/sectoolsv2/<chipset>_security_profile.xml --oem-id=0x1 --oem-product-id=0xabcd --anti-rollback-version=0x0 --signing-mode=LOCAL --root-certificate=./OEM-KEYS/qpsa_rootca.cer --ca-certificate=./OEM-KEYS/qpsa_attestca.cer --ca-key=./OEM-KEYS/qpsa_attestca.key --outfile ./signed_images_out/prog_firehose_ddr.mbn


2. Ensure the following:

   • Use values that match your secure boot enablement configuration. For example, replace OEM ID 0x1 and OEM product ID 0xabcd with your specific values.
   • Replace <chipset>_security_profile.xml with the same security profile used during secure boot enablement.
   • The signing keys must match those used during secure boot enablement.

Note If the target DigestsToSign.bin.mbn is expected to be in MBNv6 format (check according to <chipset>_security_profile.xml) and if PCAT isn’t generating MBNv6, then do the following:

1. Remove or delete any existing digest files such as ChainedTableOfDigests.bin, DIGEST_TABLE.bin, or DigestsToSign.bin.mbn from the flat build folder.
2. Open PCAT app and goto Configuration, change Digest Header Type to DIGEST_HEADER_TYPE_NONE.
3. Keep all the other fields as same and re-generate the digest files.

   In the output, you will see: ChainedTableOfDigests.bin, DIGEST_TABLE.bin, and DigestsToSign.bin, not Not DigestsToSign.bin.mbn.

4. Run the command to convert .bin to .bin.mbn.
   ./sectools mbn-tool generate --data ./DigestsToSign.bin --outfile DigestsToSign.bin.mbn --mbn-version 6

5. Sign the DigestsToSign.bin.mbn (generated in step 4) with --image-id VIP.

​

Download using PCAT

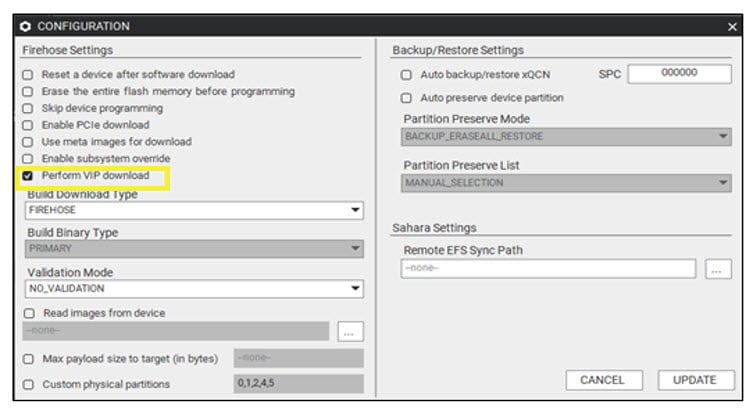

1. Select Perform VIP download in PCAT.

Note Ensure that the configurations used when generating the digests table match those used during VIP download. For example, if you select Erase the entire flash before programming while generating the digests table, then select the same option during VIP download.

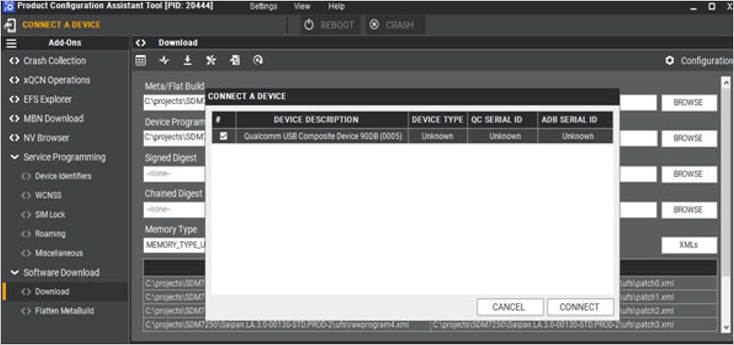

2. Connect a secure device.

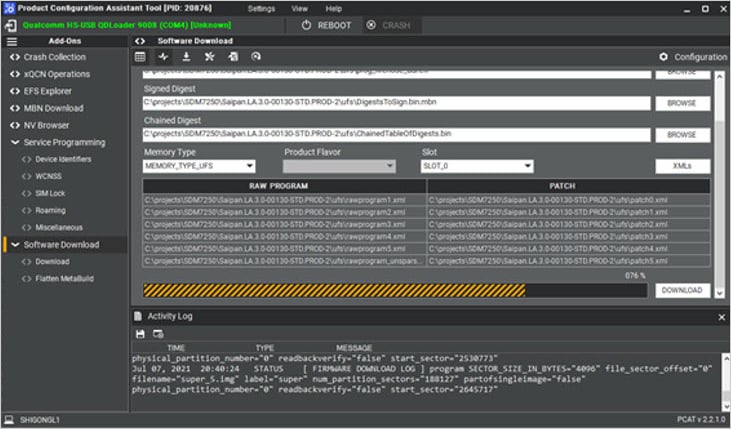

3. To perform VIP download, click on DOWNLOAD.

​

Next steps

• To enforce strict access controls, see Enable SELinux.
• To ensure that only the verified and trusted applications are loaded during the startup process, see Enable UEFI secure boot.
