Ethernet - Qualcomm Dragonwing Documentation

This guide covers configuring, operating, and troubleshooting Ethernet connectivity on the Qualcomm Dragonwing IQ-8275 EVK. The platform supports interface enumeration, data path, link speed configuration, MAC address management, MTU configuration, and network diagnostics.

Prerequisites

IQ-8275 EVK hardware
Ethernet cable (RJ45)
Host PC on the same network as the IQ-8275 EVK
SSH client software
Basic Linux command-line knowledge

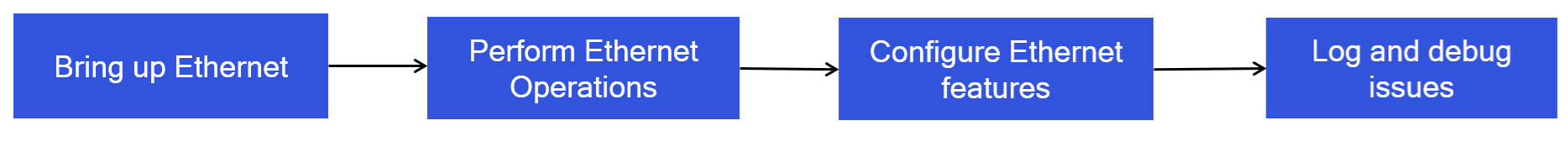

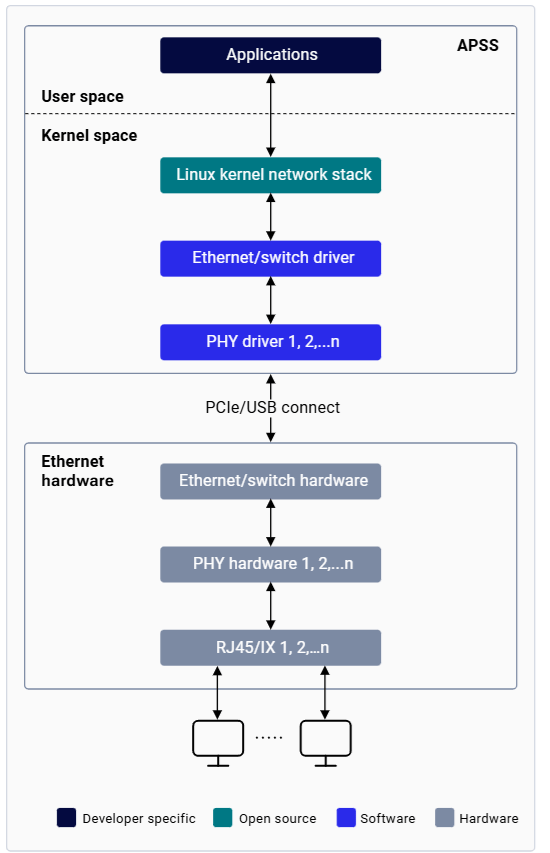

Architecture

Component	Description
Application Processor Subsystem (APSS)	Runs on a Linux-based operating system
Ethernet driver	Linux kernel driver providing data connectivity over a wired Ethernet interface
PHY driver	Low-level driver managing the Ethernet physical layer; implements a state machine for PHY lifecycle from initialization to link establishment; interacts with MDIO to access PHY registers
Ethernet hardware	1× QEP8081 PHY for 10/100/1000/2500 Mbps, enabled by RJ45 connector

Getting Started

Bring Up Ethernet

Establish access to the device via SSH over Wi-Fi or the serial prompt before proceeding. See the Set up the device section for instructions.

Flash the corresponding CDT on the device to ensure the correct configuration is used for Ethernet bring-up.

Configure MAC Address (optional)

The IQ-8275 EVK ships with a factory MAC address. Skip this step to use it as-is.To change the MAC address:

sudo ifconfig end0 hw ether XX:XX:XX:YY:YY:YY

This MAC address is valid only for the current boot cycle. After rebooting, the device reverts to the address from persistent storage.

Assign an IP Address

On a public network, the DHCP server assigns an IP address automatically. To assign a static IP address manually:

ifconfig end0 192.168.1.2

Configure MTU

ifconfig end0 down
ifconfig end0 mtu 1500
ifconfig end0 up

Verify Bring-Up

Confirm the following:

end0 is visible in ifconfig output
Interface status shows UP BROADCAST RUNNING MULTICAST
IP address is correctly assigned
MTU is set to the desired value (typically 1500)
No errors in RX/TX packet counters

Ethernet Operations

Check Connectivity

Use ping to verify connectivity between the device and a remote host. The client IP address must be in the same subnet as the device.

ping 169.254.227.240

Configure NIC Settings

ethtool end0
ethtool -S end0

Configure Network Interface

ifconfig end0

Monitor Network Connections

netstat -r

Capture Network Traffic

sudo tcpdump -i any -s 0 -w /home/ubuntu/tcpdump.pcap

View Routing Table

ip r s

Configure Link Speed

sudo ethtool -s end0 autoneg on speed 1000 duplex full

Troubleshooting

Collect Diagnostic Logs

Collect dmesg logs

sudo dmesg > /home/ubuntu/dmesg_logs.txt

Collect tcpdump logs

sudo tcpdump -i any -s 0 -w /home/ubuntu/tcpdump.pcap

Press Ctrl+C to stop capture.

Pull log files to host PC

scp ubuntu@<device_ip>:/home/ubuntu/tcpdump.pcap .
scp ubuntu@<device_ip>:/home/ubuntu/dmesg_logs.txt .

Collect diagnostic output

{
  echo "=== ETHTOOL OUTPUT ==="
  ethtool end0
  echo "=== ETHTOOL STATISTICS ==="
  ethtool -S end0
  echo "=== IFCONFIG OUTPUT ==="
  ifconfig end0
  echo "=== NETSTAT OUTPUT ==="
  netstat -r
  echo "=== IP ROUTE OUTPUT ==="
  ip route show
} > /home/ubuntu/ethernet_diagnostics.txt

Common Issues

No Link Detected

sudo dmesg | grep -i phy
ifconfig end0
ethtool end0

Solutions: Replace faulty cable, ensure both ends are securely connected, verify link partner is powered on, check for PHY driver errors in dmesg.

Cannot Ping Remote Host

ifconfig end0
ip route show
netstat -r
arp -a
sudo tcpdump -i end0 icmp

Solutions: Configure correct IP address and subnet mask; add default gateway if needed.

Slow Network Performance

ethtool end0 | grep -E "Speed|Duplex"
ethtool -S end0 | grep -E "error|drop|collision"
ifconfig end0 | grep MTU

Solutions: Force 1000 Mbps full-duplex if auto-negotiation fails; replace cable if errors are detected.

Interface Not Detected

ifconfig -a
sudo dmesg | grep -i ethernet
ls /sys/class/net/

Solutions: Ensure correct CDT is flashed; verify Ethernet driver is compiled in kernel; reboot and check again.

MAC Address Issues

ifconfig end0 | grep ether
cat /var/persist/config.ini | grep MAC_ID

Solutions: Create or restore /var/persist/config.ini. Format: MDIOBUSID1: 1: MAC_ID01: XX:XX:XX:YY:YY:YY.

Command Reference

Command	Purpose	Example
`dmesg`	View kernel messages	`dmesg \| grep eth`
`ethtool <if>`	Check link status	`ethtool end0`
`ethtool -S <if>`	View NIC statistics	`ethtool -S end0`
`ifconfig <if>`	Check interface config	`ifconfig end0`
`ip addr show`	Show IP addresses	`ip addr show end0`
`ip route show`	Show routing table	`ip route show`
`ping <host>`	Test connectivity	`ping 192.168.1.10`
`tcpdump -i <if>`	Capture packets	`tcpdump -i end0`
`netstat -r`	Show routes	`netstat -r`
`arp -a`	Show ARP table	`arp -a`
