I2C

Interintegrated circuit (I2C) is a bidirectional 2-wire bus for an efficient inter‑IC control bus developed by Philips in the 1980s. Every device on the bus has its own unique address (registered with the I2C general body headed by Philips). The I2C core supports a multicontroller mode and 10‑bit target address and 10‑bit extendable address. For more information about I2C, see https://www.i2c-bus.org/fileadmin/ftp/i2c_bus_specification_1995.pdf.

I2C communication sequence overview

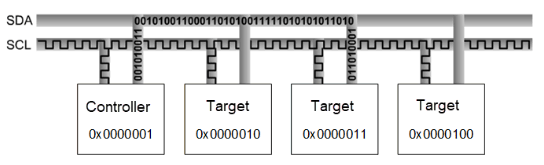

The following figure shows the communication sequence between the controller and targets in I2C.

Figure : I2C controller and target communication sequence

For example, no device can use 1111-0XX listed in the I2C specification and high-speed mode with 3.4 MHz clock frequency. Following are the I2C modes and supported speeds.

Standard mode: 100 kbps
Fast mode: 400 kbps
Fast mode plus: 1 Mbps

The maximum supported bandwidth is 1 MHz.

I2C data packet format

The controller sends a 7‑bit or 10‑bit address as shown in the following figure. Along with the address, a 1‑bit read/write indicating the type of operation is also sent. Data is transferred in sequences of 8 bits placed on an SDA line. For every byte transferred, the device receiving the data sends back an ACK bit (totaling nine clock pulses).

ACK bit LOW: receives the data and is ready to accept the next byte.
ACK bit HIGH: receives the data and can’t accept further data. The controller then terminates the transmission with the STOP sequence.

Figure : I2C data packet

I2C sequences

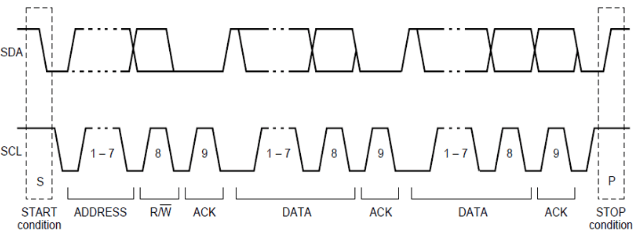

When the SCL is high, the SDA must remain stable and can’t change. Only when the clock line is low can the data line change. However, there are two exceptions: START and STOP sequences.

Figure : I2C sequence

I2C features

This section explains the I2C serial engine transfer modes and the different scenarios where each mode is used. The following table lists the transfer modes enabled in the various I2C subsystem drivers. Table : I2C transfer modes

Subsystem	Transfer mode	Description
Linux	FIFO (low speed) CPU DMA (high speed) GSI	Supports 100 kHz, 400 kHz, and 1000 kHz bus speeds Supports 7‑bit target address according to the I2C specification
Boot	FIFO
aDSP/Qualcomm TEE/SDC	FIFO

I2C interface components

This section provides information about the subsystem driver, kernel device tree nodes, and related documentation. Table : I2C interface: Linux

File type	Description
Device tree source	QCS6490 and QCS5430: https://git.linaro.org/kernel-org/linux-next.git/tree/arch/arm64/boot/dts/qcom/sc7280.dtsi Dragonwing IQ-9075: https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/qcom/sa8775p.dtsi Dragonwing IQ-615: https://git.kernel.org/pub/scm/linux/kernel/git/qcom/linux.git/tree/arch/arm64/boot/dts/qcom/qcs615.dtsi?h=arm64-for-6.16
`Pinctrl` settings	QCS6490 and QCS5430: https://git.linaro.org/kernel-org/linux-next.git/tree/arch/arm64/boot/dts/qcom/sc7280.dtsi Dragonwing IQ-9075: https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/qcom/sa8775p.dtsi Dragonwing IQ-615: https://git.kernel.org/pub/scm/linux/kernel/git/qcom/linux.git/tree/arch/arm64/boot/dts/qcom/qcs615.dtsi?h=arm64-for-6.16
Qualcomm TEE settings	`/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c`

Table : I2C interface: Boot

File type	Description
QUP v3 serial engine configuration	QUP v3 serial engine: `/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/BOOT.MXF.1.0.c1/boot_images/boot/Settings/Soc/<chipset>/Core/Buses/qup_common/<chipset>-qupv3.dtsi` GPIO configurations: `/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/BOOT.MXF.1.0.c1/boot_images/boot/Settings/Soc/<chipset>/Core/Buses/qup_common/<chipset>-qupv3-pinctrl.dtsi`
Qualcomm TEE settings	`/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c`

Table : I2C interface: aDSP/SLPI/SDC

File type	Description
QUP v3 serial engine configuration	`/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_common/config/<chipset>/adsp/ssc/qup_devcfg.c` `/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_fw/config/<chipset>/fw_devcfg.c` `settings/buses/qup_common/config/<chipset>/adsp/ssc/qup_devcfg.json`
Firmware configuration settings	`/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_fw/config/<chipset>/fw_devcfg.c` `/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_fw/config/<chipset>/fw_devcfg.xml`

Table : I2C interface: Qualcomm TEE

File type Description

QUP v3 serial engine configuration

File type	Description
QUP v3 serial engine configuration	`/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg_user.h` `/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg_user.c` `/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg.xml`
Qualcomm TEE settings	`/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c`

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg_user.h
/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg_user.c
/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg.xml

Qualcomm TEE settings

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c

I2C APIs

I2C APIs for the following subsystems are listed in this section.

Linux:
- https://github.com/torvalds/linux/blob/master/include/linux/i2c.h.
- https://github.com/torvalds/linux/blob/master/include/linux/i2c-dev.h.
Boot: boot_images/boot/QcomPkg/Include/i2c_api.h
aDSP/SDC/SLPI: adsp_proc/core/api/buses/i2c_api.h
Qualcomm TEE: trustzone_images/core/buses/api/i2c/qupv3/i2c_api.h

I2C software device tree configuration

This section provides information on the I2C device tree configuration, and documentation for the device nodes.

Linux

For the configuration settings file, see the following DTSI files.

QCS6490 and QCS5430: https://git.linaro.org/kernel-org/linux-next.git/tree/arch/arm64/boot/dts/qcom/sc7280.dtsi
Dragonwing IQ-9075: https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/qcom/sa8775p.dtsi
Dragonwing IQ-615: https://git.kernel.org/pub/scm/linux/kernel/git/qcom/linux.git/tree/arch/arm64/boot/dts/qcom/qcs615.dtsi?h=arm64-for-6.16

For more details, see the i2c-geni-qcom.yaml file at https://github.com/torvalds/linux/blob/master/Documentation/devicetree/bindings/i2c/qcom%2Ci2c-geni-qcom.yaml, and the I2C driver at the https://github.com/torvalds/linux/blob/master/drivers/i2c/busses/i2c-qcom-geni.c files.

i2c1: i2c@984000 {
compatible = "qcom,geni-i2c";
reg = <0 0x00984000 0 0x4000>;
clocks = <&gcc GCC_QUPV3_WRAP0_S1_CLK>;
clock-names = "se";
pinctrl-names = "default";
pinctrl-0 = <&qup_i2c1_data_clk>;
interrupts = <GIC_SPI 602 IRQ_TYPE_LEVEL_HIGH>;
#address-cells = <1>;
#size-cells = <0>;
interconnects = <&clk_virt MASTER_QUP_CORE_0 0 &clk_virt SLAVE_QUP_CORE_0 0>,
		<&gem_noc MASTER_APPSS_PROC 0 &cnoc2 SLAVE_QUP_0 0>,
		<&aggre1_noc MASTER_QUP_0 0 &mc_virt SLAVE_EBI1 0>;
interconnect-names = "qup-core", "qup-config",
		"qup-memory";
power-domains = <&rpmhpd SC7280_CX>;
required-opps = <&rpmhpd_opp_low_svs>;
	        dmas = <&gpi_dma0 0 1 QCOM_GPI_I2C>,
		 <&gpi_dma0 1 1 QCOM_GPI_I2C>;
dma-names = "tx", "rx";
status = "disabled";
			};

For kernel documentation specific to the GPIO pinctrl configuration, see the following files.

QCS6490 and QCS5430: https://git.linaro.org/kernel-org/linux-next.git/tree/arch/arm64/boot/dts/qcom/sc7280.dtsi
Dragonwing IQ-9075: https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/qcom/sa8775p.dtsi
Dragonwing IQ-615: https://git.kernel.org/pub/scm/linux/kernel/git/qcom/linux.git/tree/arch/arm64/boot/dts/qcom/qcs615.dtsi?h=arm64-for-6.16
Documentation/devicetree/bindings/pinctrl/qcom,<chipset>-tlmm.yaml

The corresponding configurations of the QUP v3 serial engine GPIOs are present and mapped in the pinctrl.dtsi file.

qup_i2c1_data_clk: qup-i2c1-data-clk-state {
				pins = "gpio4", "gpio5";
				function = "qup01";
			};

In the QUPAC_Access.c file, ensure that the particular serial engine configuration for the specified protocol is for the I2C protocol. Qualcomm TEE build:

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c

Modify the required settings or refer to the default settings assigned for the QUP v3 serial engine instances. The following sample configuration is enabled by default in I2C.

/*   PeriphID,         ProtocolID,               Mode,  NsOwner,       bAllowFifo, bLoad, bModExcl  */
  { QUPV3_0_SE0, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // LT9611 and QPS615 I2C
  { QUPV3_0_SE1, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // APPS I2C - PCIE/ USB Type C
  { QUPV3_0_SE2, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // SMB / LS1 I2C

{ QUPV3_1_SE1, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // NFC I2C
 { QUPV3_1_SE2, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // HDMI OUT for
 { QUPV3_1_SE5, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_GSI,  AC_HLOS,            FALSE, TRUE,  FALSE}, // Legacy Touch

Boot

Configure I2C in the UEFI. The configuration files can be accessed from the following locations.
- QUP v3 serial engine: /firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/BOOT.MXF.1.0.c1/boot_images/boot/Settings/Soc/<chipset>/Core/Buses/qup_common/<chipset>-qupv3.dtsi
- Qualcomm TEE settings: /firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c

Note: For configuration settings in boot, see Boot.

Enable the I2C protocol in UEFI at /QcomPkg/SocPkg/<chipset>/LAA/Core.fdf.

-#INF QcomPkg/Drivers/I2CDxe/I2CDxe.inf
+INF QcomPkg/Drivers/I2CDxe/I2CDxe.inf

The application enables the I2C interface. The application then performs the read and write operation through the I2C interface. For information about I2C function usage, see boot_images/QcomPkg/QcomTestPkg/I2CApp/I2Ceeprom.c.
Add i2c_open->i2c_read/i2c_write->i2c_close sequentially in code.
Ensure that the GpiDxe.inf and I2C.efi files are loaded by verifying the device/UEFI bootup logs before you call I2c_open.

aDSP/SDC

Firmware loading with SSC QUP is performed during the bootup sequence of the aDSP subsystem. The configuration files are present in the aDSP build at:

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_fw/config/<chipset>/fw_devcfg.c
/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_fw/config/<chipset>/fw_devcfg.xml

The following configuration is a sample of SSC QUP SE1, SE2, and SE3 settings loaded with the I2C firmware.

se_cfg se1_cfg = { 0x84000, SE_PROTOCOL_I2C,    GSI,     TRUE, TRUE  };
se_cfg se2_cfg = { 0x88000, SE_PROTOCOL_I2C,    GSI,     TRUE, TRUE  };
se_cfg se3_cfg = { 0x8C000, SE_PROTOCOL_I2C,    GSI,     FALSE, TRUE  };

GPIO configuration: Each serial engine in the QUP v3 common driver is configured with the default GPIO configuration. The GPIO configuration is picked up by the QUP v3 common driver according to the protocol loaded in the serial engine. File path:

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/ADSP.HT.5.5.c8/adsp_proc/core/settings/buses/qup_common/config/<chipset>/adsp/ssc/qup_instance_mapping.c

The default GPIO configuration can be overwritten as follows.

{      .instance_id          =  5 ,         //Instance ID
        .qup              =  QUP_SSC,    //QUP Type
        .se_index         =  4,          //SE ID
        .se_data          =  NULL,       //devcfg_map
        .protocol_io_cfg  =  {
                                TLMM_MAP(TLMM_GPIO_KEEPER ,TLMM_GPIO_2MA,TLMM_GPIO_KEEPER ),              //SLEEP CFG
                                TLMM_MAP(TLMM_GPIO_NO_PULL,TLMM_GPIO_6MA,TLMM_GPIO_KEEPER ),              //SPI CFG
                                TLMM_MAP(TLMM_GPIO_NO_PULL,TLMM_GPIO_2MA,TLMM_GPIO_NO_PULL),              //UART CFG
                                TLMM_MAP(TLMM_GPIO_PULL_UP,TLMM_GPIO_2MA,TLMM_GPIO_NO_PULL),              //I2C CFG
                                TLMM_MAP(TLMM_GPIO_PULL_UP,TLMM_GPIO_2MA,TLMM_GPIO_KEEPER )               //I3C CFG
                             },
        .se_exclusive     =  TRUE,
}

TLMM_MAP is a macro to initialize the active and sleep state GPIO configurations. For example, sample usage of the TLMM_MAP macro.

TLMM_MAP (active state pull type, drive strength, sleep state pull type)

Qualcomm TEE

The QUP v3 serial engine for I2C can be configured as follows. File path:

settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg_user.h

#define ENABLE_I2C_08

The ENABLE_I2C_<num> number is based on the serial number of the serial engine (starting from 0). For example, if there are two QUPs: QUPV3_0 with seven serial engines and QUPV3_1 with eight serial engines, then the user must enable QUPV3_2_SE2. The macro should be ENABLE_I2C_08. GPIO configuration: drive strength and pull are configured per PIN for SDA at zero index and SCL at one index. File path:

settings/buses/i2c/qupv3/config/<chipset>/tz/i2c_devcfg_user.c

i2c_plat_device_config_user i2c_device_user_config_0 =
{
    {0,0},        //.drive_strength index: 0 - SDA, 1 - SCL
                                    value: 0 - 2MA, 1 - 4MA, 2 - 6MA
    {3,3},       //.pull  index: 0 - SDA, 1 - SCL
                       value: 0 - NO_PULL, 1 = PULL_DOWN, 2 = KEEPER, 3 = PULL_UP
    0xFF,        //.gpii_idx
    0,           //.mode_select  not supported for TZ
    0,           //.flags not supported for TZ
};

QUPAC access control: controls the firmware loading and access control permission from the Qualcomm TEE subsystem are configured in the QUPAC access file at:

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.c

Configure I2C interface

This section provides information about the I2C software driver kernel configuration and device tree node changes.

Linux

The following driver kernel configurations are required to support the I2C interface.

Driver source: https://github.com/torvalds/linux/blob/master/drivers/i2c/busses/i2c-qcom-geni.c

Kernel defconfig file path:

<workspace_path_of_LINUX_kernel_image>/sources/kernel/kernel_platform/kernel/arch/arm64/configs/qcom_defconfig

The following kernel configurations are to be enabled.

CONFIG_QCOM_GENI_SE=y
CONFIG_I2C_CHARDEV=m
CONFIG_I2C_QCOM_GENI=m to configure user space applications
CONFIG_QCOM_GPI_DMA=m to enable GSI support

To enable the I2C DT node for validations, apply the following patch to the /arch/arm64/boot/dts/qcom/<chipset>.dtsi file.

diff --git a/arch/arm64/boot/dts/qcom/<chipset>.dtsi b/arch/arm64/boot/dts/qcom/<chipset>.dtsi
index 8575f0b..cced7c0 100644
--- a/arch/arm64/boot/dts/qcom/<chipset>.dtsi
+++ b/arch/arm64/boot/dts/qcom/<chipset>.dtsi
@@ -6865,3 +6865,7 @@
 <GIC_PPI 10 IRQ_TYPE_LEVEL_LOW>;
 };
 };
+
+ &i2c1 {
+ status = "ok";
+};

Note: You should compile the kernel configuration and device tree changes. After compilation, you can load the images to the device to verify the interface. For information about interface verification, see the Verify I2C interface section.

Verify I2C interface

This section describes the validation procedure and test results for the I2C drivers and the Qualcomm drivers.

Linux

For upstream I2C kernel test applications, see https://cdn.kernel.org/pub/software/utils/i2c-tools/i2c-tools-4.3.tar.gz. To cross-compile tools, do the following.

Download i2c-tool from https://cdn.kernel.org/pub/software/utils/i2c-tools/i2c-tools-4.3.tar.gz.
Extract the tool from the downloaded tar file.
tar -xzvf <i2c-tool-path>
Change the current directory to the i2c-tool path.
cd <i2c-tool-path>

Install the tool.

sudo apt-get install gcc-aarch64-linux-gnu

Set up the environment for cross-compilation.
export CC=aarch64-linux-gnu-gcc
Compile the tool.
make USE_STATIC_LIB=1
The binary is generated at <i2c-tool-path>/tools/.

Validate the driver by checking for dev node (/dev/i2c-0 and /dev/i2c-1) in the SSH shell or use the ADB shell. For more information about how to run SSH, see the Use SSH section. Verify I2C driver

To verify the I2C driver, do the following:
1. Open the SSH shell in permissive mode or use the ADB shell.
2. Mount the file system.
  mount -o remount,rw /usr
3. Transfer files using SCP or similar tools. For example, scp i2cdetect root@10.92.162.185:/bin
4. Assign permission to execute.
  chmod 777 i2cdetect

Verify an I2C device with the i2cdetect tool. For example, ./i2cdetect -y -r <i2c_instance_num>.

/lib # ./i2cdetect -y -r 0

The following output is displayed.

1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
-- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- 2b -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- 44 -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- --
/lib # exit

View I2C detect help For more information about I2C detection, and how to use it, run the following commands.

/lib # ./i2cdetect --help

The following output is displayed.

Error: Unsupported option "--help"!
Usage: i2cdetect [-y] [-a] [-q|-r] I2CBUS [FIRST LAST]
i2cdetect -F I2CBUS
i2cdetect -l
I2CBUS is an integer or an I2C bus name
If provided, FIRST and LAST limit of the probing range.

Identify probed device in DUT To identify the device probed from the DUT, run the following command.

/lib # ./i2cdump -r 0-0xff 0 0x2b b

Output:

WARNING! This program can confuse your I2C bus, cause data loss and worse!
will probe file /dev/i2c-0, address 0x2b, mode byte
Probe range limited to 0x00-0xff.
Continue? [Y/n] Y
0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f    0123456789abcdef
00: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
b0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................

Read I2C data from device To read I2C data from the device, run the following commands.

/lib # ./i2cget 0 0x2b 4 b

Output:

WARNING! This program can confuse your I2C bus, cause data loss and worse!
Will read from device file /dev/i2c-0, chip address 0x2b, data address
0x04, using read byte data.
Continue? [Y/n] Y
0x00

Debug I2C issues

The section describes the default logging method of the I2C software driver to enable logging the I2C transfer failures.

Linux

The I2C driver logs are enabled through the kernel dynamic debugging method. Enable CONFIG_DYNAMIC_DEBUG in the following file to support the dynamic debugging of the kernel drivers.

<workspace_path_of_LINUX_kernel_image>/sources/kernel/kernel_platform/kernel/arch/arm64/configs/qcom_defconfig

To enable and view the I2C driver logs in the kernel logs (dmesg), run the following commands.

mount -t debugfs none /sys/kernel/debug
echo -n "file i2c-qcom-geni.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file i2c-core-base.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file i2c-dev.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file i2c-mux.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file gpi.c +p" > /sys/kernel/debug/dynamic_debug/control

To debug the error message: [ 8.583248] geni_i2c a94000.i2c: Invalid proto 1 for driver protocol load failures, do the following.

Identify the board type. Example: QUPV3_1_SE5 board type details

B -    461251 - CDT Version:3,Platform ID:34,Major ID:1,Minor ID:0,Subtype:2

From the kernel log, locate the platform ID and subtype related details at:

/firmware/qualcomm-linux-spf-1-0_ap_standard_oem_nomodem/TZ.XF.5.0/trustzone_images/core/settings/buses/qup_accesscontrol/qupv3/config/<chipset>/QUPAC_Access.xml

Obtain the Qualcomm TEE QUPAC_Access.c file configurations.
Identify the configuration specific to the serial engine.
Locate the platform ID type within the QUPAC_Access.xml file.
Map this platform ID type to the corresponding qupv3_perms structure within the QUPAC_Access.c file.
Verify the protocol and mode configurations in the QUPAC_Access.c file.

I2C examples

For information about the upstream device tree reference, see the following DTSI files.

QCS6490 and QCS5430: https://git.linaro.org/kernel-org/linux-next.git/tree/arch/arm64/boot/dts/qcom/sc7280.dtsi
Dragonwing IQ-9075: https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/qcom/sa8775p.dtsi
Dragonwing IQ-615: https://git.kernel.org/pub/scm/linux/kernel/git/qcom/linux.git/tree/arch/arm64/boot/dts/qcom/qcs615.dtsi?h=arm64-for-6.16

For information about device-tree node for the Qualcomm Linux hardware SoCs, see the following DTSI files.

QCS6490 and QCS5430: https://git.linaro.org/kernel-org/linux-next.git/tree/arch/arm64/boot/dts/qcom/qcs6490-rb3gen2.dts
Dragonwing IQ-9075: https://github.com/torvalds/linux/blob/master/arch/arm64/boot/dts/qcom/sa8775p.dtsi
Dragonwing IQ-615: https://git.kernel.org/pub/scm/linux/kernel/git/qcom/linux.git/tree/arch/arm64/boot/dts/qcom/qcs615.dtsi?h=arm64-for-6.16

Introduction

Architecture

Key Documents

Technologies

System

Release Notes

I2C communication sequence overview

I2C data packet format

I2C sequences

I2C features

I2C interface components

I2C APIs

I2C software device tree configuration

Linux

Boot

aDSP/SDC

Qualcomm TEE

Configure I2C interface

Linux

Verify I2C interface

Linux

Debug I2C issues

Linux

I2C examples

​I2C communication sequence overview

​I2C data packet format

​I2C sequences

​I2C features

​I2C interface components

​I2C APIs

​I2C software device tree configuration

​Linux

​Boot

​aDSP/SDC

​Qualcomm TEE

​Configure I2C interface

​Linux

​Verify I2C interface

​Linux

​Debug I2C issues

​Linux

​I2C examples

I2C communication sequence overview

I2C data packet format

I2C sequences

I2C features

I2C interface components

I2C APIs

I2C software device tree configuration

Linux

Boot

aDSP/SDC

Qualcomm TEE

Configure I2C interface

Linux

Verify I2C interface

Linux

Debug I2C issues

Linux

I2C examples
