For supported interfaces and capabilities, see IQ-615 display specifications.

​
Set up the high-definition multimedia interface (HDMI) display

The display subsystem provides the Weston and Wayland compositors, along with libdrm APIs, all of which interact with the DPU driver to render the Wayland client applications. Use the sample test applications to evaluate the basic rendering of Wayland applications and to connect to the HDMI display.
Figure: HDMI setup workflow

Figure: HDMI setup workflow

Prerequisites
  1. Set switch SW7 to OFF.
  2. Connect the device to the HDMI display as shown in the following figure:

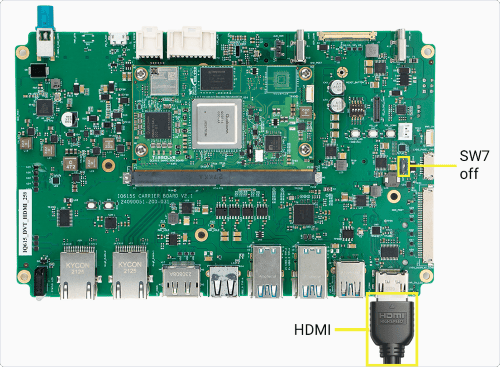

    Figure: HDMI setup

    Figure: HDMI setup

Verify the HDMI display setup
  1. Connect the display using an HDMI cable.
  2. Power on the device. Weston starts automatically during boot.
  3. Verify the display. The following Weston flower pattern displays on both DisplayPort screens, indicating successful setup.
    Figure: Weston flower pattern
After you have set up the HDMI display, run the following test applications to verify the display functionality:

Run Weston simple EGL

Verify composition and rendering of frames on your display.

Run DRM modetest

Verify the display driver topology and DPU paths.
