This is the fastest path from “I have images” to “it runs on the NPU.” No QAIRT SDK (Software Development Kit), no cross-compile toolchain, no C++ daemon. The expected time is under two hours, most of which is training on Edge Impulse’s servers. What you’ll have at the end: a native aarch64 binary running on your IQ-8275 EVK, detecting ping-pong paddles on the HTP (Hexagon Tensor Processor) NPU at 2 ms per inference. This tutorial assumes a freshly flashed IQ-8275 EVK running Qualcomm Linux. If you haven’t set up the board yet, follow the IQ-8275 EVK device setup guide first.

What you need


Edge Impulse account	Free developer tier at studio.edgeimpulse.com
Board	IQ-8275 EVK, freshly flashed with Qualcomm Linux — see the device setup guide
A camera	Phone, webcam, or any device that can take photos
Node.js on the board	For `edge-impulse-linux-runner` — install with `apt install nodejs npm`
`scp`	To copy the binary to the board

Step 1: Create the project

Log in to Edge Impulse Studio, click Create new project, name it (e.g. pingpong-paddle). Leave everything else as default. The project type is set when you add the learning block.

Step 2: Build your dataset

This is the most important step. The model is only as good as the photos it learns from. Go to Data acquisition in the left menu. Use Upload data or the Edge Impulse mobile app to collect images directly from your phone. Aim for at least 150–200 images across two categories: Photos with the paddle (paddles label):

Different distances: close-up, arm’s length, across the table
Different lighting: bright room, dim room, window light, lamp light
Different backgrounds: desk, floor, wall, outdoors
Different angles: straight on, tilted, partially hidden
With and without a hand holding it

Background photos (no label needed):

The same environments without the paddle — roughly 20–30% of your total images
These teach the model what “nothing here” looks like, which is half the job for a detector

For each paddle photo, draw a bounding box around the paddle in the Labeling queue tab. Keep the label name consistent: use paddles for all boxes.

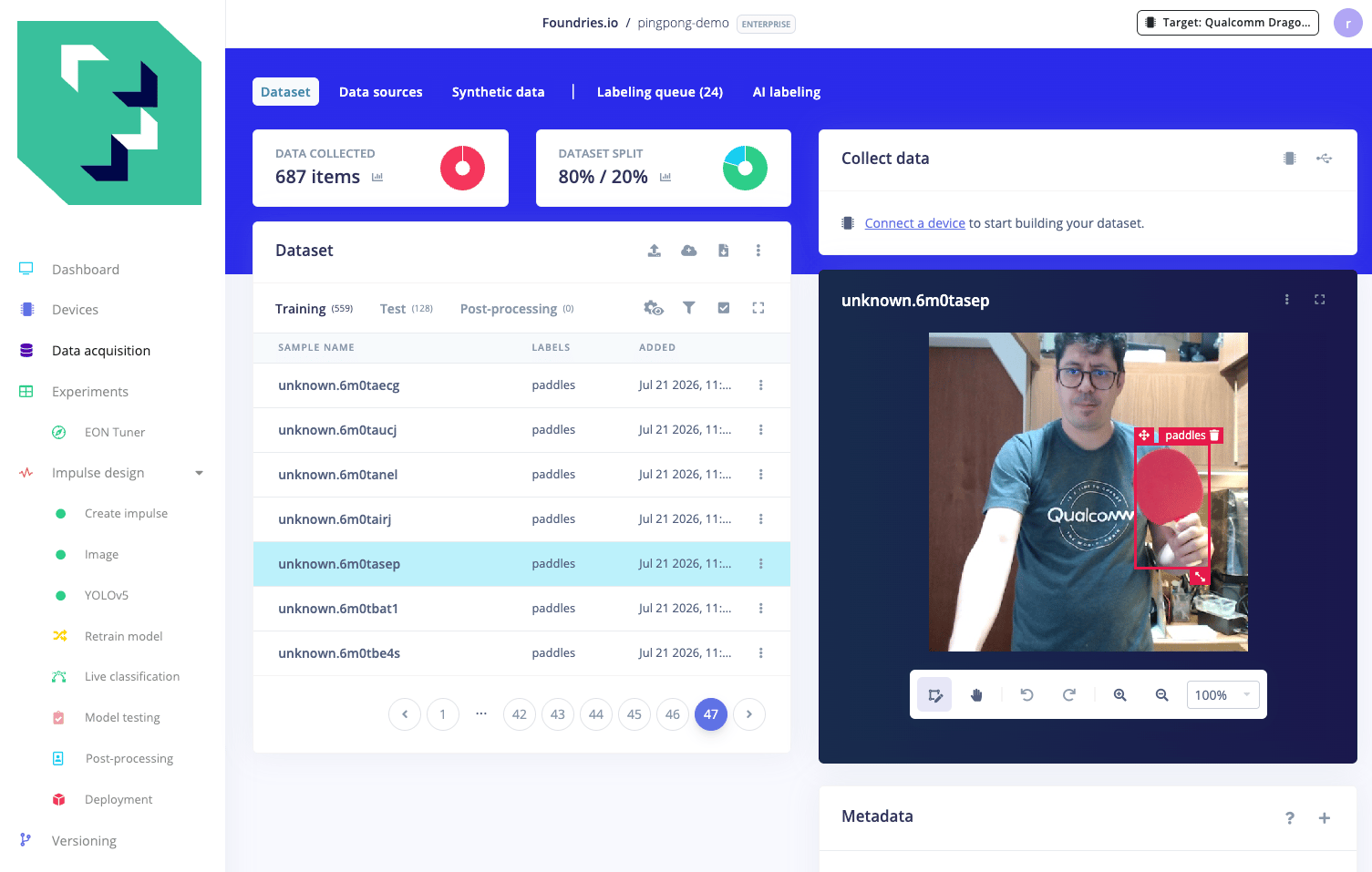

Edge Impulse Data acquisition: labeled images with bounding boxes

Variety beats quantity. 200 images across many scenes generalizes far better than 500 photos all taken from the same spot in the same room. If the model later fails on a specific scene (dim light, close-up, unusual angle), add more photos of that scene.

Step 3: Build the impulse

Left menu: Impulse design → Create impulse.
Input block: Image, 320 × 320, Resize mode: Squash.
Processing block: Image (Color depth: RGB).
Learning block: Object Detection → YOLOv5 (Foundries.io).
Click Save impulse.

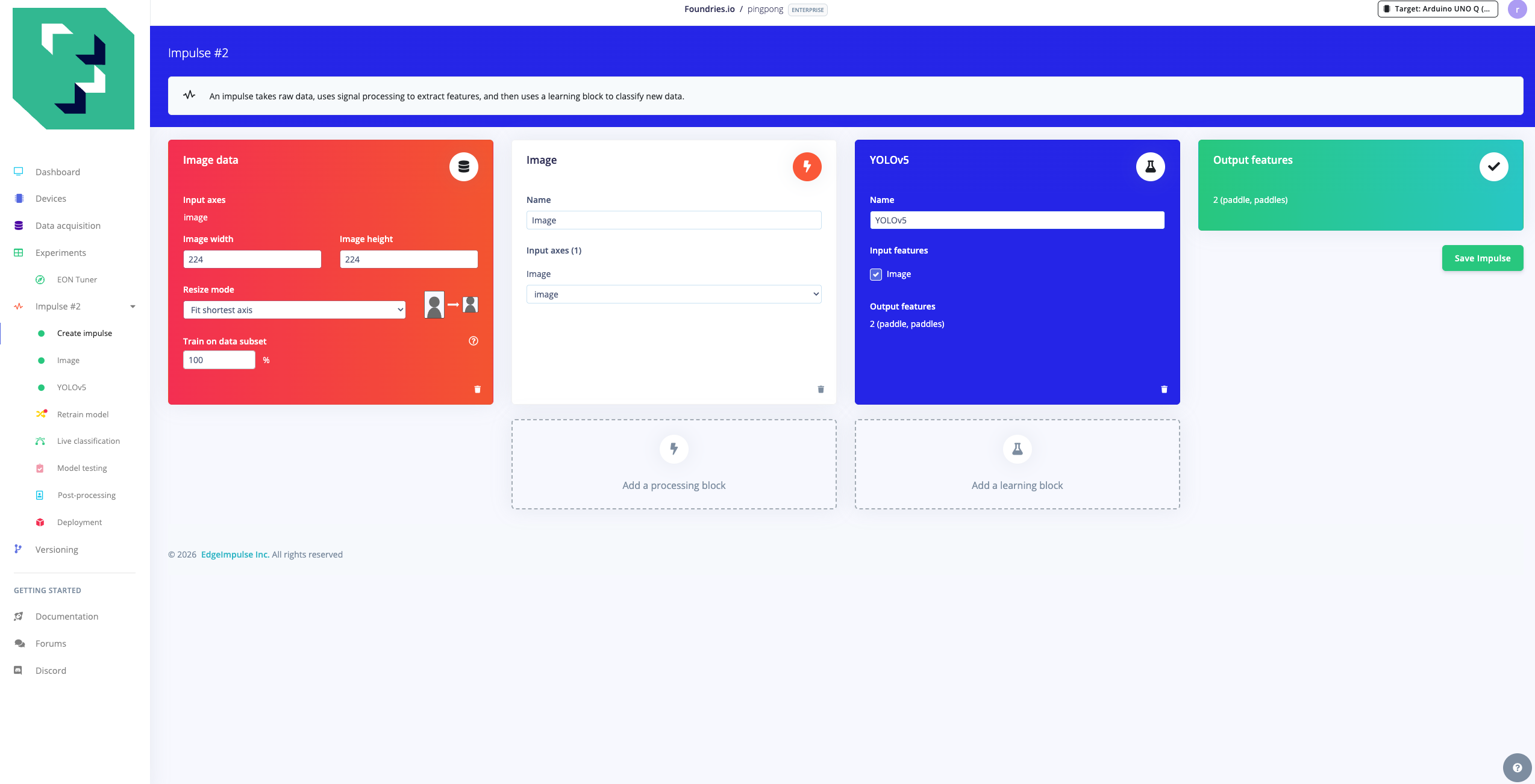

Impulse design: 320×320 Image input + YOLOv5 learning block

YOLOv5 availability. YOLOv5 is no longer a built-in block in Edge Impulse Studio (removed February 2025). To add it to your project, push it as a custom block from edgeimpulse/ml-block-yolov5:

git clone https://github.com/edgeimpulse/ml-block-yolov5
cd ml-block-yolov5
edge-impulse-blocks init   # links to your project
edge-impulse-blocks push

After pushing, refresh Studio and YOLOv5 appears under Add learning block. Alternatively, YOLO-Pro (the built-in block, marked Developer Preview) works fine and produces equivalent results.

Step 4: Generate features

Left menu: Image → Generate features → click Generate features. Wait about 1–2 minutes. Confirm the summary shows your training items and 1 class (paddles).

Step 5: Train

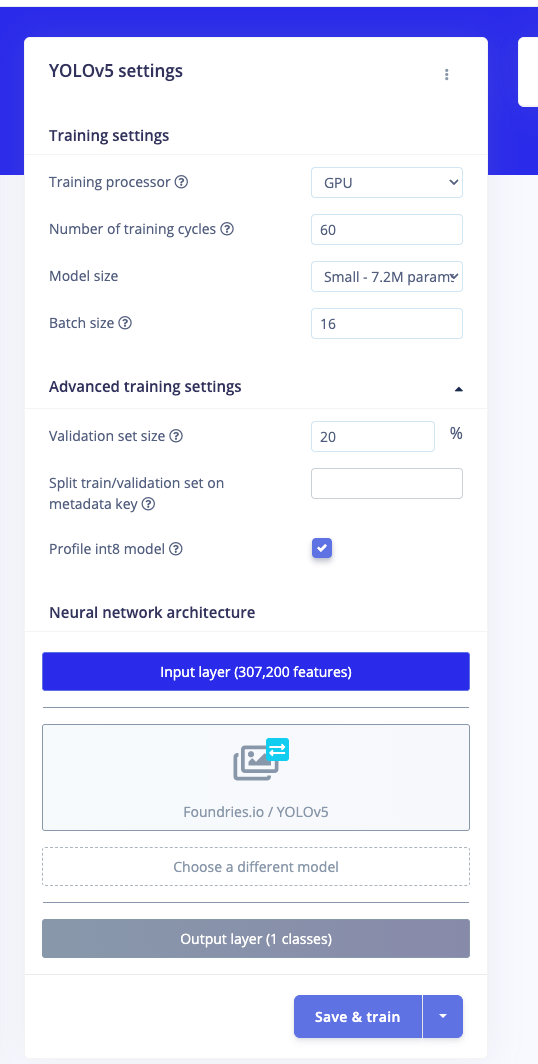

Left menu: YOLOv5, then configure:

Setting	Value
Training processor	GPU
Model size	Small (7.2M params)
Training cycles	60
Pretrained weights	True
Validation set size	20%
Profile int8 model	enabled

Click Save & train. Training runs on Edge Impulse’s GPU workers, about 10 to 15 minutes.

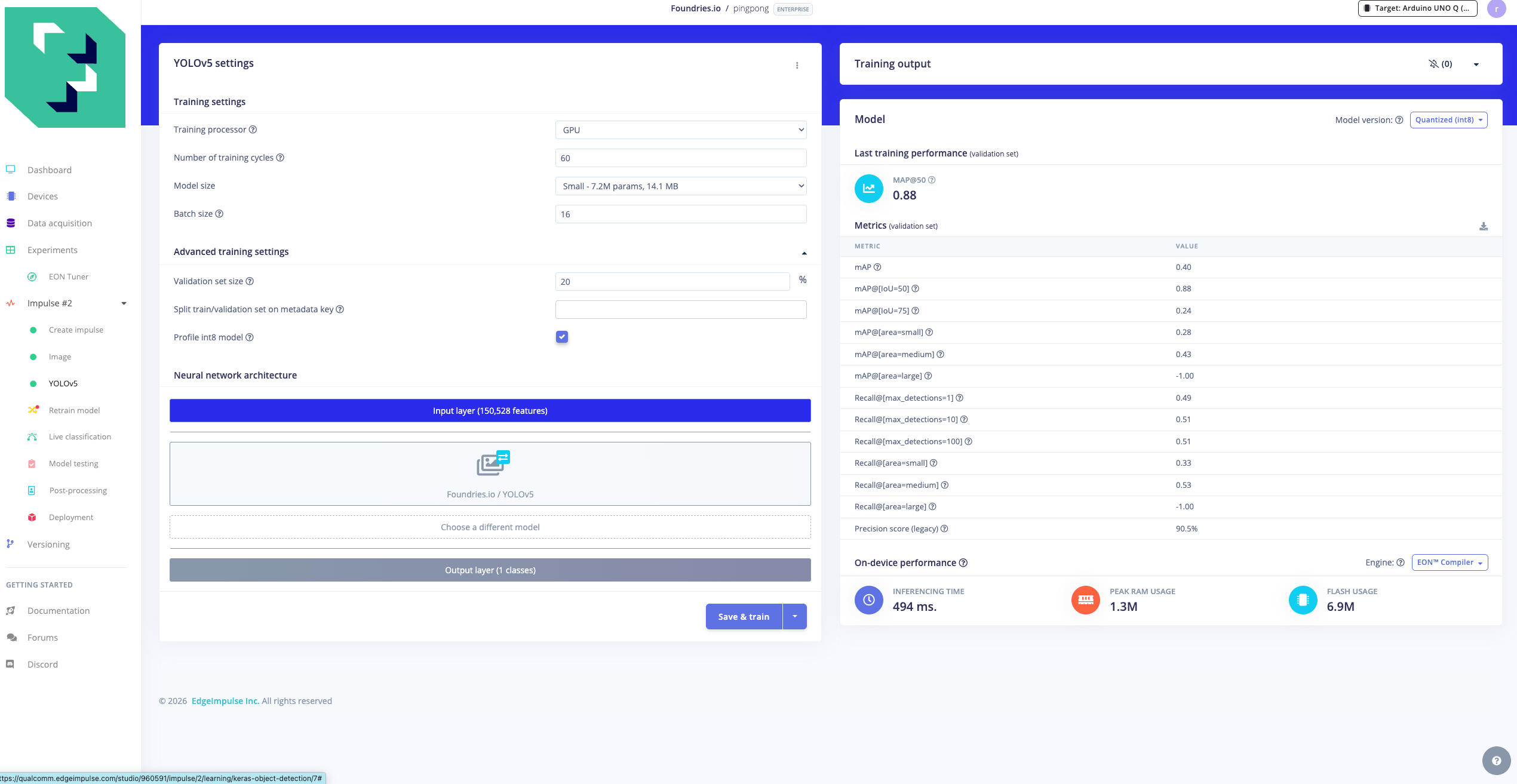

Expected result:

Metric	Value	What it means
mAP@0.5	~0.98	Mean Average Precision at IoU 0.5, how accurately and completely the model finds paddles. 1.0 is perfect.
mAP@0.5:0.95	~0.46	Same metric averaged over stricter box-overlap thresholds (the COCO standard).

These numbers are from the ~670-image dataset built for this project, collected across many distances, lighting conditions, and backgrounds. A 150-image dataset may land lower; a well-varied 200-image set can get close.

Step 6: Download the deployment binary

Left menu: Deployment.
Search for “Qualcomm Dragonwing IQ 8275 EVK (AARCH64 with Qualcomm QNN)”.
Click Build.
Download the .eim file (~20 MB).

The .eim is a self-contained native aarch64 executable that embeds the model, the Edge Impulse Linux runtime, and the Qualcomm QNN (Qualcomm Neural Network) TFLite delegate. No separate runtime installation is needed on the board.

Step 7: Copy to the board and run

# Copy the binary
scp your-file.eim root@<board-ip>:/home/weston/pingpong-demo.eim

# Make executable and run
ssh root@<board-ip> "chmod +x /home/weston/pingpong-demo.eim && /home/weston/pingpong-demo.eim"

Default board credentials: root / oelinux123. /home/weston is the home directory of the weston user — the Wayland compositor user pre-created on every stock Qualcomm Linux image. It is not specific to this tutorial; if your image uses a different user, replace weston with your username throughout. On startup the binary prints a JSON handshake confirming it’s on the NPU:

{
  "inferencing_engine": {"engine_type": 4, "properties": ["qnn_delegates"]},
  "model_parameters": {
    "image_input_height": 320, "image_input_width": 320,
    "labels": ["paddles"], "model_type": "object_detection"
  }
}

engine_type: 4 with qnn_delegates means the graph is running on the HTP NPU via the QNN TFLite delegate. After confirming the handshake, stop the .eim process with Ctrl-C before proceeding to Step 8 — the runner below will launch the model file for live detection.

Step 8: Run live detection

The .eim is a socket service: once started, it waits for frames and returns detections. To actually send it images and see results, use the edge-impulse-linux-runner CLI, it opens the board’s camera, streams frames to the .eim, and prints detections in real time.

# On the board
npm install -g edge-impulse-linux
edge-impulse-linux-runner --model-file /home/weston/pingpong-demo.eim

The runner opens the camera, sends each frame to the .eim, and prints detection results with latency per frame. On the IQ-8275 EVK over 10 runs:

Metric	Value
Warm-up (JIT compile, first inference)	~3 ms
Steady-state inference	~2 ms
Inference-only FPS (theoretical)	~500 fps

The 3 ms warm-up is a one-time cost on the first call while the QNN delegate compiles the graph for the HTP. Every call after that is 2 ms, resident in NPU memory.

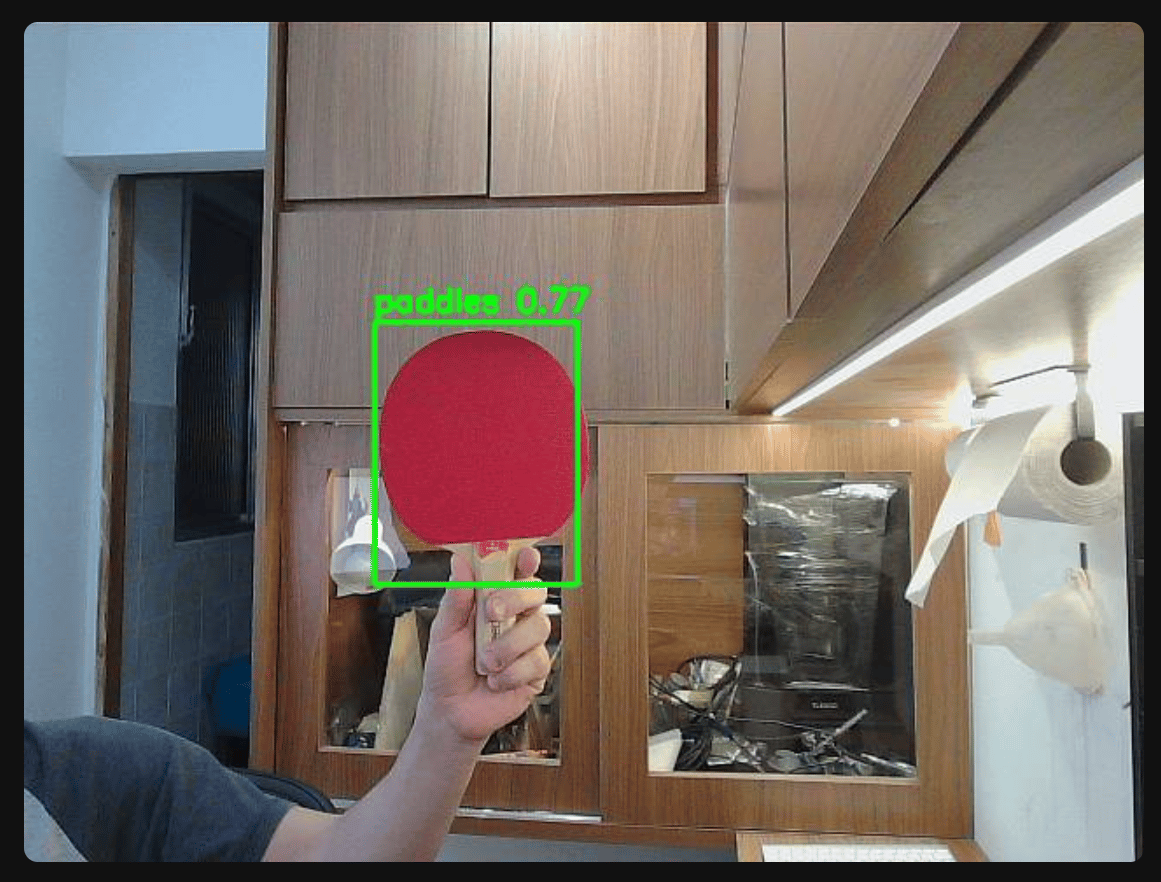

Live paddle detection on the IQ-8275 EVK via Edge Impulse .eim — "paddles 0.97" bounding box

Protocol detail. The .eim speaks a JSON protocol over a UNIX socket. The correct message key for inference is classify_shm with features passed via POSIX shared memory, the more obvious classify key returns an error. The edge-impulse-linux-runner handles this correctly; if you build a custom client, use classify_shm.

What’s happening under the hood

The .eim is the JIT deployment path: the model is stored as an INT8 TFLite graph and compiled for the HTP on the first inference call. This trades a small first-call cost (3 ms) for portability. The same binary runs on any QNN-capable board without recompilation. The alternative is AOT (Ahead-Of-Time): compile the model offline with the QAIRT toolchain and ship a chip-specific context binary (.bin) that has zero warm-up but only runs on the exact HTP hardware version it was built for. Both paths reach 2 ms steady-state. The full QAIRT pipeline is documented in Paddle detection step by step with Qualcomm tools.

Next steps

The full story: every design decision, failure, and benchmark: Teaching a Qualcomm chip to spot a ping-pong paddle
Every command, every script, end to end: Paddle detection step by step with Qualcomm tools
All source files inline (env.sh, conversion scripts, requirements): Companion files
